Progress

Tilebox supports user-defined progress indicators during the execution of a job. This can be useful to provide visibility into the execution and the expected duration of a job, especially for longer running jobs.

Tracking Progress

Progress indicators in Tilebox use a done / total model. Tasks can increase a total value to specify the total work to be done, and the same or any other task can increase a done counter to track the amount of work that has already been completed.

Progress tracking is always done at a task level. Each task can report its progress updates, as increases in done and total independently, and the job’s total progress is the sum of all tasks’ progress.

Python

from tilebox.workflows import Task, ExecutionContext

class ProgressRootTask(Task):
    n: int

    def execute(self, context: ExecutionContext) -> None:
        # report that 10 units of work need to be done
        context.progress().add(self.n)  # [!code ++]

        for _ in range(self.n):
            context.submit_subtask(ProgressSubTask())

class ProgressSubTask(Task):
    def execute(self, context: ExecutionContext) -> None:
        # report that one unit of work has been completed
        context.progress().done(1)  # [!code ++]

Copy

Go

type ProgressRootTask struct {
	N int
}

func (t *ProgressRootTask) Execute(ctx context.Context) error {
    // report that 10 units of work need to be done
	err := workflows.DefaultProgress().Add(ctx, uint64(t.N)) // [!code ++]
	if err != nil {
		return err
	}

	for range t.N {
		_, err := workflows.SubmitSubtask(ctx, &ProgressSubTask{})
		if err != nil {
			return err
		}
	}

	return nil
}

type ProgressSubTask struct{}

func (t *ProgressSubTask) Execute(ctx context.Context) error {
    // report that one unit of work has been completed
	err := workflows.DefaultProgress().Done(ctx, 1) // [!code ++]
	if err != nil {
		return err
	}

	return nil
}

Copy

Multiple Progress Indicators

A job can have multiple independent progress indicators. This is useful when a job consists of multiple steps, that each benefits from having its own progress indicator. To create a new progress indicator, call context.progress(name) with a unique name for the indicator.

Python

class MultiProgressWorkflowRoot(Task):
    n: int

    def execute(self, context: ExecutionContext) -> None:
        # initialize a progress indicator for the finalize task
        context.progress("finalize").add(1)

        process = context.submit_subtask(Process(self.n))
        context.submit_subtask(Cleanup(), depends_on=[process])

class Process(Task):
    n: int

    def execute(self, context: ExecutionContext) -> None:
        # initialize two progress indicators for the two steps,
        # with a total work of n for each
        context.progress("step1").add(self.n)
        context.progress("step2").add(self.n)

        # now submit N subtasks for the two steps
        for _ in range(self.n):
            step1 = context.submit_subtask(Step1())
            context.submit_subtask(Step2(), depends_on=[step1])

class Step1(Task):
    def execute(self, context: ExecutionContext) -> None:
        # 1 unit of work for step1 is done
        context.progress("step1").done(1)


class Step2(Task):
    def execute(self, context: ExecutionContext) -> None:
        # 1 unit of work for step2 is done
        context.progress("step2").done(1)

class Finalize(Task):
    def execute(self, context: ExecutionContext) -> None:
        # finalize is done
        context.progress("finalize").done(1)

Copy

Go

type MultiProgressWorkflowRoot struct {
    N int
}

func (t *MultiProgressWorkflowRoot) Execute(ctx context.Context) error {
    // initialize a progress indicator for the finalize task
    err := workflows.Progress("finalize").Add(ctx, 1)
    if err != nil {
        return err
    }

    process, err := workflows.SubmitSubtask(ctx, &Process{N: t.N})
    if err != nil {
        return err
    }
77 collapsed lines

    _, err = workflows.SubmitSubtask(ctx, &Cleanup{}, subtask.WithDependencies(process))
    if err != nil {
        return err
    }

    return nil
}

type Process struct {
    N int
}

func (t *Process) Execute(ctx context.Context) error {
	// initialize two progress indicators for the two steps,
	// with a total work of n for each
    err := workflows.Progress("step1").Add(ctx, uint64(t.N))
    if err != nil {
        return err
    }

    err = workflows.Progress("step2").Add(ctx, uint64(t.N))
    if err != nil {
        return err
    }

    // now submit N subtasks for the two steps
    for range t.N {
        step1, err := workflows.SubmitSubtask(ctx, &Step1{})
        if err != nil {
            return err
        }

        _, err = workflows.SubmitSubtask(ctx, &Step2{}, subtask.WithDependencies(step1))
        if err != nil {
            return err
        }
    }

    return nil
}

type Step1 struct{}

func (t *Step1) Execute(ctx context.Context) error {
    // 1 unit of work for step1 is done
    err := workflows.Progress("step1").Done(ctx, 1)
    if err != nil {
        return err
    }

    return nil
}

type Step2 struct{}

func (t *Step2) Execute(ctx context.Context) error {
    // 1 unit of work for step2 is done
    err := workflows.Progress("step2").Done(ctx, 1)
    if err != nil {
        return err
    }

    return nil
}

type Cleanup struct{}

func (t *Cleanup) Execute(ctx context.Context) error {
    // finalize is done
    err := workflows.Progress("finalize").Done(ctx, 1)
    if err != nil {
        return err
    }

    return nil
}

Copy

Querying Progress

At any time during a job’s execution, you can query the current progress of a job using the find method on the job client. The returned job object contains a progress field that contains the current progress of the job.

Python

job = job_client.find(job_id)
for indicator in job.progress:
    print(f"{indicator.label}: {indicator.done}/{indicator.total}")

Copy

Go

job, err := client.Jobs.Get(ctx, jobID)
if err != nil {
    slog.Error("Failed to get job", slog.Any("error", err))
    return
}

for _, indicator := range job.Progress {
    fmt.Printf("%s: %d/%d\n", indicator.Label, indicator.Done, indicator.Total)
}

Copy

Output

finalize: 1/1
step1: 4/4
step2: 4/4

Copy

Progress Display in interactive environments

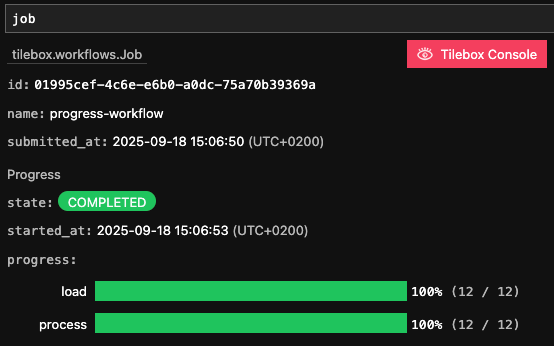

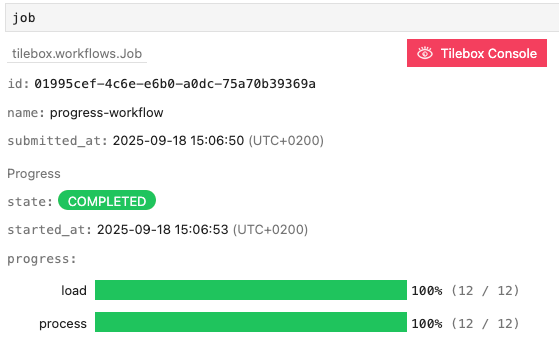

When running in an interactive environment such as a Jupyter notebook and the cell output is a Tilebox job object, the job is automatically rendered, including its progress indicators.

Python

job = job_client.find(job_id)
job  # trigger notebook cell output

Copy

Progress idempotency

Since tasks may fail and can subsequently be retried, it’s possible that a task is executed more than once. This means that a task may report progress more than once. To avoid double-counting such progress updates, Tilebox only considers the progress reported by the last execution of a task.
