Axiom | Tilebox Docs

Tilebox can export workflow telemetry to Axiom through OTLP. Use this when your team already analyzes logs and traces in Axiom or wants long-term telemetry in Axiom datasets.

Built-in Tilebox Console observability does not require Axiom. Axiom export is optional and additive.

Configure Axiom export

Create Axiom datasets for logs and traces and an API key with ingest permissions. Then configure export when the runner process starts.

Python

from tilebox.workflows import Client
from tilebox.workflows.observability.logging import configure_otel_logging_axiom
from tilebox.workflows.observability.tracing import configure_otel_tracing_axiom

from my_workflow import ProcessScene

configure_otel_tracing_axiom(
    service="sentinel-2-runner",
    dataset="workflow-traces",
    api_key="<axiom-api-key>",
)
configure_otel_logging_axiom(
    service="sentinel-2-runner",
    dataset="workflow-logs",
    api_key="<axiom-api-key>",
)

client = Client(name="sentinel-2-runner")
runner = client.runner(tasks=[ProcessScene])
runner.run_forever()

package main

import (
	"context"
	"log/slog"

	"github.com/tilebox/tilebox-go/observability"
	"github.com/tilebox/tilebox-go/observability/logger"
	"github.com/tilebox/tilebox-go/observability/tracer"
	"github.com/tilebox/tilebox-go/workflows/v1"
	"go.opentelemetry.io/otel"
)

type ProcessScene struct{}

func (t *ProcessScene) Execute(ctx context.Context) error {
	slog.InfoContext(ctx, "processing scene")
	return nil
}

func main() {
	ctx := context.Background()
	service := &observability.Service{Name: "sentinel-2-runner"}
	apiKey := "<axiom-api-key>"

	traceProvider, shutdownTracer, err := tracer.NewAxiomProvider(ctx, service, "workflow-traces", apiKey)
	if err != nil {
		slog.ErrorContext(ctx, "failed to configure Axiom tracing", slog.Any("error", err))
		return
	}
	defer shutdownTracer(ctx)
	otel.SetTracerProvider(traceProvider)

	logHandler, shutdownLogger, err := logger.NewAxiomHandler(ctx, service, "workflow-logs", apiKey,
		logger.WithLevel(slog.LevelInfo),
	)
	if err != nil {
		slog.ErrorContext(ctx, "failed to configure Axiom logging", slog.Any("error", err))
		return
	}
	defer shutdownLogger(ctx)
	slog.SetDefault(logger.New(logHandler))

	client := workflows.NewClient()
	runner, err := client.NewTaskRunner(ctx)
	if err != nil {
		slog.ErrorContext(ctx, "failed to create runner", slog.Any("error", err))
		return
	}

	if err := runner.RegisterTasks(&ProcessScene{}); err != nil {
		slog.ErrorContext(ctx, "failed to register tasks", slog.Any("error", err))
		return
	}

	runner.Run(ctx)
}

Environment variables

You can omit credentials from code by setting environment variables:

Variable	Used by
`AXIOM_API_KEY`	log and trace export
`AXIOM_LOGS_DATASET`	`configure_otel_logging_axiom()`
`AXIOM_TRACES_DATASET`	`configure_otel_tracing_axiom()`

Python

configure_otel_tracing_axiom(service="sentinel-2-runner")
configure_otel_logging_axiom(service="sentinel-2-runner")

traceProvider, shutdownTracer, err := tracer.NewAxiomProviderFromEnv(ctx, service)
if err != nil {
	slog.ErrorContext(ctx, "failed to configure Axiom tracing", slog.Any("error", err))
	return
}
defer shutdownTracer(ctx)
otel.SetTracerProvider(traceProvider)

logHandler, shutdownLogger, err := logger.NewAxiomHandlerFromEnv(ctx, service,
	logger.WithLevel(slog.LevelInfo),
)
if err != nil {
	slog.ErrorContext(ctx, "failed to configure Axiom logging", slog.Any("error", err))
	return
}
defer shutdownLogger(ctx)
slog.SetDefault(logger.New(logHandler))

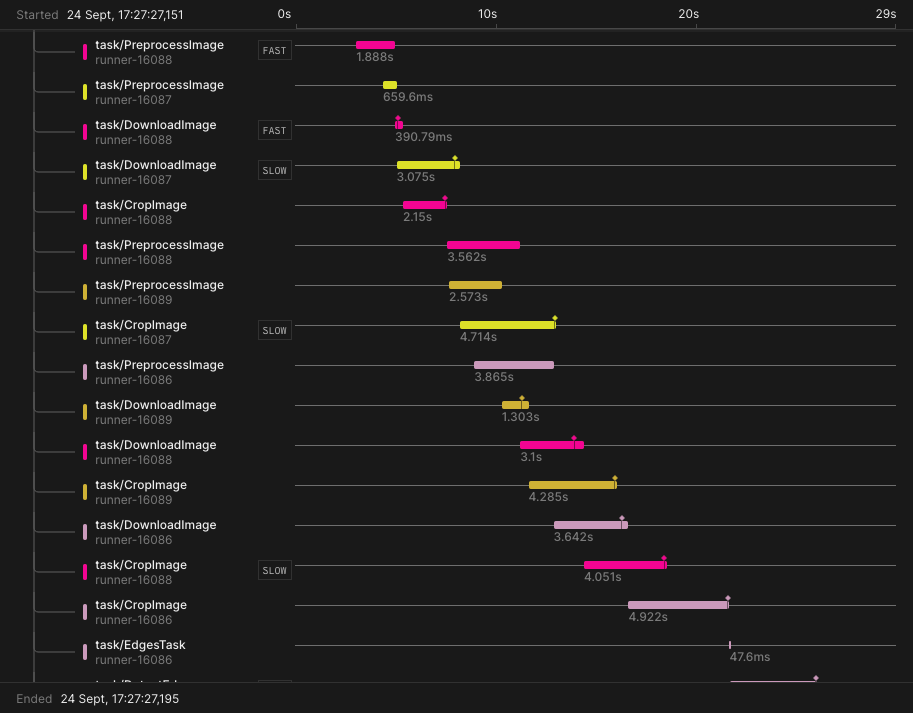

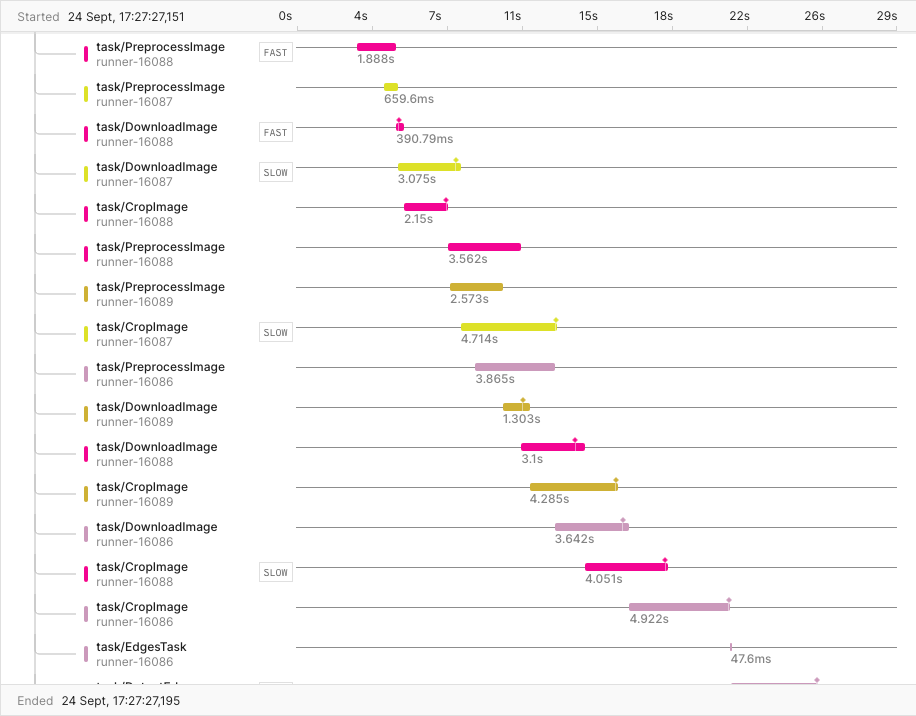

Existing Axiom screenshots
