Ingest into a spatio-temporal catalog

Use this guide after Build a spatio-temporal catalog. It assumes you already created a spatio-temporal dataset and now want to load geospatial metadata into one of its collections.

The example starts from a GeoParquet file, reshapes it to match the catalog schema, ingests it into Tilebox, and runs a time and location query against the new collection.

If your source data uses a different file format, see Ingesting from common file formats for examples of loading CSV, Parquet, GeoParquet, and NetCDF data before ingestion.

Prerequisites

• You have a Tilebox API key.
• You have installed the Python SDK.
• You have created the catalog from Build a spatio-temporal catalog, or an equivalent spatio-temporal dataset with matching fields.

uv add tilebox geopandas lonboard shapely

Copy

Download the example metadata

The example metadata is available as a GeoParquet file:

curl -L \
  -o modis_MCD12Q1.geoparquet \
  https://storage.googleapis.com/tbx-web-assets-2bad228/docs/data-samples/modis_MCD12Q1.geoparquet

Copy

This file contains MODIS land cover product metadata, including timestamps and product footprints.

Read and preview the source data

Read the GeoParquet file with Geopandas. The resulting GeoDataFrame includes a geometry column, which Tilebox uses for spatial indexing in spatio-temporal datasets.

Python

import geopandas as gpd

source = gpd.read_parquet("modis_MCD12Q1.geoparquet")
source.head(5)

Copy

Output

                       time                  end_time                    granule_name                                           geometry  horizontal_tile_number  vertical_tile_number   tile_id
0 2001-01-01 00:00:00+00:00 2001-12-31 23:59:59+00:00  MCD12Q1.A2001001.h00v08...  POLYGON ((-180 10, -180 0, -170 0, ...                       0                     8  51000008
1 2001-01-01 00:00:00+00:00 2001-12-31 23:59:59+00:00  MCD12Q1.A2001001.h00v09...  POLYGON ((-180 0, -180 -10, ...                            0                     9  51000009

Copy

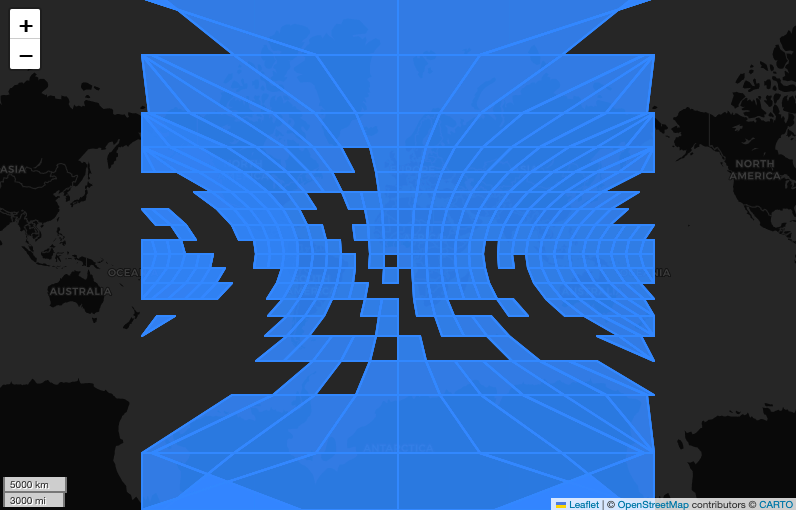

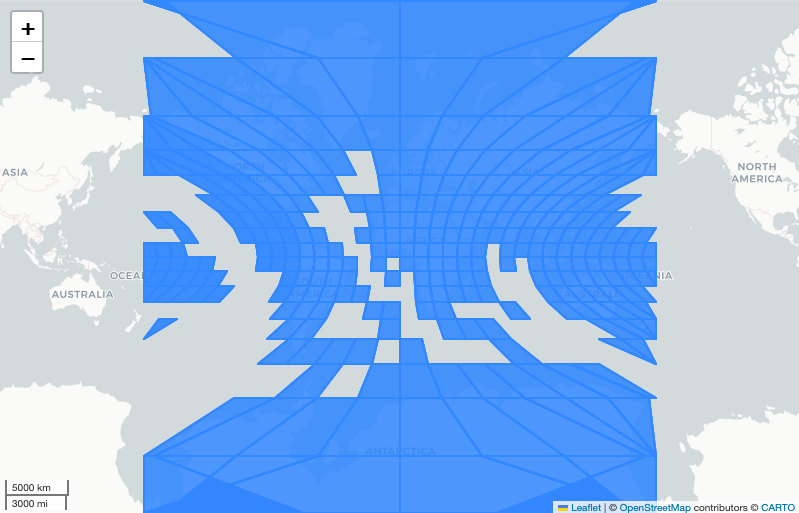

You can inspect the footprints before ingestion with lonboard.

Python

from lonboard import viz

viz(source, map_kwargs={"show_tooltip": True})

Copy

Match the catalog schema

Prepare a DataFrame with the fields required by the catalog. This example targets the schema from Build a spatio-temporal catalog: time, geometry, product_id, location, cloud_cover, and processing_level.

Python

products = source.copy()

products["product_id"] = products["granule_name"]
products["location"] = products["granule_name"].map(
    lambda name: f"modis://MCD12Q1/{name}"
)
products["cloud_cover"] = 0.0
products["processing_level"] = "MCD12Q1"

products = products[
    ["time", "geometry", "product_id", "location", "cloud_cover", "processing_level"]
]

products.head(5)

Copy

Keep the DataFrame columns aligned with the dataset schema. Required fields such as id and ingestion_time are generated by Tilebox during ingestion, so you do not include them in the input DataFrame.

Connect to the catalog collection

Access the catalog dataset and create or reuse a collection for the MODIS products.

Python

from tilebox.datasets import Client

client = Client()
dataset = client.dataset("internal_imagery_catalog")
collection = dataset.get_or_create_collection("modis_land_cover")

Copy

Replace internal_imagery_catalog with the code name of your catalog if you used a different value in the previous guide.

Ingest the products

Ingest the prepared DataFrame into the collection. Tilebox validates each row against the dataset schema before storing it.

Python

datapoint_ids = collection.ingest(products)
print(f"Successfully ingested {len(datapoint_ids)} datapoints.")

Copy

Output

Successfully ingested 7245 datapoints.

Copy

Query the ingested catalog

After ingestion, query the collection by time and location. The query model is the same one used by Tilebox open data catalogs.

Python

from shapely import Polygon

area = Polygon(
    [
        (-124.45, 49.19),
        (-120.88, 29.31),
        (-66.87, 24.77),
        (-65.34, 47.84),
        (-124.45, 49.19),
    ]
)

matches = collection.query(
    temporal_extent=("2015-01-01", "2020-01-01"),
    spatial_extent=area,
)

matches[["product_id", "processing_level", "location"]]

Copy

Output

<xarray.Dataset> Size: 18kB
Dimensions:           (time: 110)
Coordinates:
  * time              (time) datetime64[ns] 2015-01-01 ... 2019-01-01
Data variables:
    product_id        (time) object 'MCD12Q1.A2015001.h10v03...' ...
    processing_level  (time) object 'MCD12Q1' 'MCD12Q1' ...
    location          (time) object 'modis://MCD12Q1/MCD12Q1.A2015001...' ...

Copy

View the data in the Console

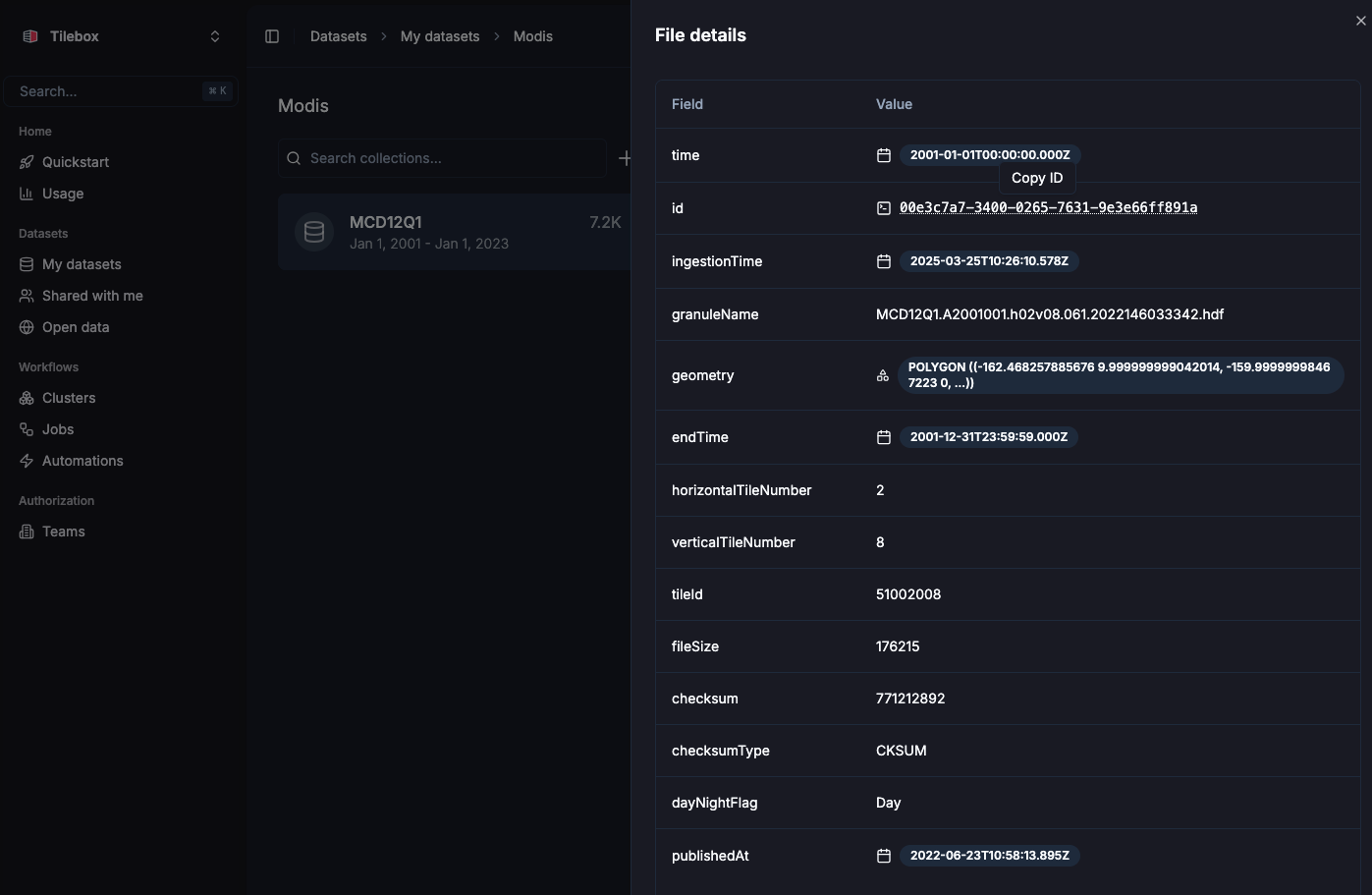

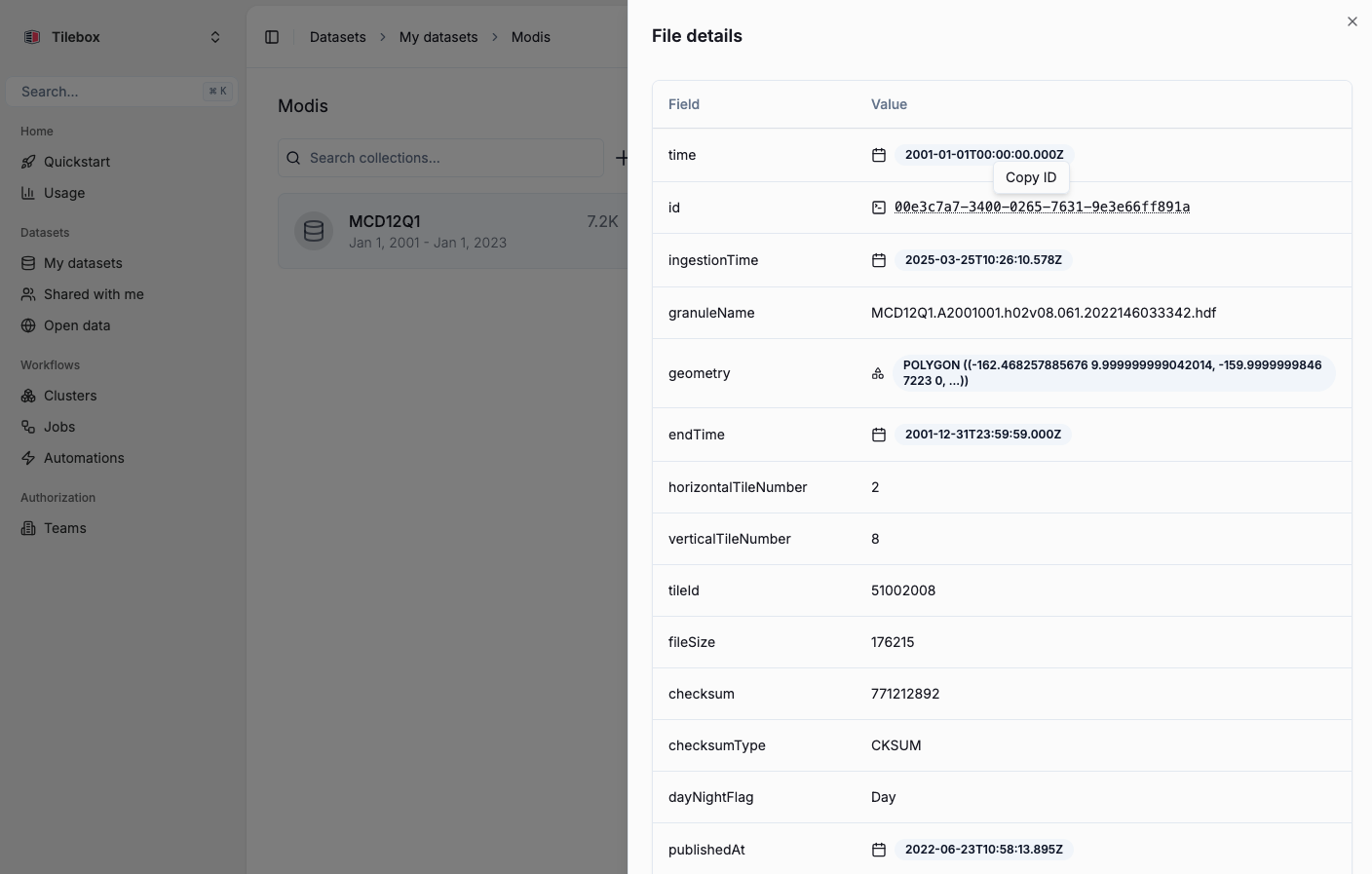

You can also inspect ingested datapoints in the Tilebox Console. Open the dataset, select the collection, and click a datapoint to inspect its fields and geometry.
