Build a spatio-temporal catalog

Use a spatio-temporal dataset when each datapoint has both a time and a geometry. This is useful for internal imagery catalogs, derived products, ground truth data, regions of interest, and processing outputs that need geospatial lookup.

This guide creates an imagery catalog from code. You will define the dataset schema with the Python SDK, reference the image files as assets, ingest geospatial metadata, and query the catalog by time, location, and custom fields.

Prerequisites

• You have a Tilebox API key.
• You have installed the Python SDK.

uv add tilebox geopandas shapely

Copy

Define the catalog schema

Start by choosing the spatio-temporal dataset kind and the custom fields for your catalog. Tilebox adds the required time, id, ingestion_time, and geometry fields automatically.

The example catalog tracks imagery products with a provider product ID, file assets, cloud cover, and processing level. Field descriptions and example values become part of the generated schema documentation.

Python

from tilebox.datasets import Client
from tilebox.datasets.data.datasets import DatasetKind
from tilebox.datasets.schema import Assets

client = Client()

fields = [
    {
        "name": "product_id",
        "type": str,
        "description": "Stable product or scene identifier from the source catalog.",
        "example_value": "LC08_L2SP_033033_20240808_20240814_02_T1",
    },
    {
        "name": "assets",
        "type": Assets,
        "description": "Files associated with the imagery product.",
    },
    {
        "name": "cloud_cover",
        "type": float,
        "description": "Cloud cover percentage for the product footprint.",
        "example_value": "3.2",
        "queryable": True,
    },
    {
        "name": "processing_level",
        "type": str,
        "description": "Processing level or product type assigned by the source provider.",
        "example_value": "L2_SR",
        "queryable": True,
    },
]

Copy

Use field names that are stable and descriptive. Changing or removing fields after ingesting datapoints requires emptying the affected collections first, because existing datapoints must continue to match the dataset schema. The same rule applies to queryable fields: choose them before ingestion because you cannot make an existing field queryable or add a new queryable field to a non-empty dataset.

Create the dataset

Call create_or_update_dataset with the dataset kind, code name, field list, and display name. The code name becomes the stable identifier used in SDK calls.

Python

dataset = client.create_or_update_dataset(
    kind=DatasetKind.SPATIOTEMPORAL,
    code_name="internal_imagery_catalog",
    fields=fields,
    name="Internal imagery catalog",
)

print(dataset)

Copy

If a dataset with the same code name already exists, create_or_update_dataset updates it instead of creating a duplicate. This makes the snippet safe to keep in a setup script.

The Python SDK currently sets the dataset display name and schema. Field-level description and example_value entries populate the generated schema documentation. Use the Tilebox Console when you want to add rich Markdown documentation to the dataset page.

Inspect the generated schema documentation

Tilebox uses the dataset kind and field annotations to document the schema. Required fields are added by the dataset kind, and your custom fields appear with their descriptions and examples.

For this catalog, the complete schema includes:

Field	Type	Queryable	Purpose
time	Required	Dedicated time filter	Timestamp associated with the datapoint.
id	Required	Dedicated ID filter	Tilebox-generated UUID for the datapoint.
ingestion_time	Required	No	Time when Tilebox ingested the datapoint.
geometry	Required	Dedicated spatial filter	Geometry used for spatial queries.
product_id	Custom	No	Stable product or scene identifier.
assets	Custom	No	Files associated with the imagery product.
cloud_cover	Custom	Yes	Cloud cover percentage for filtering.
processing_level	Custom	Yes	Provider processing level or product type.

The descriptions and example values you provided in the SDK call appear in the dataset schema documentation.

Add richer dataset documentation

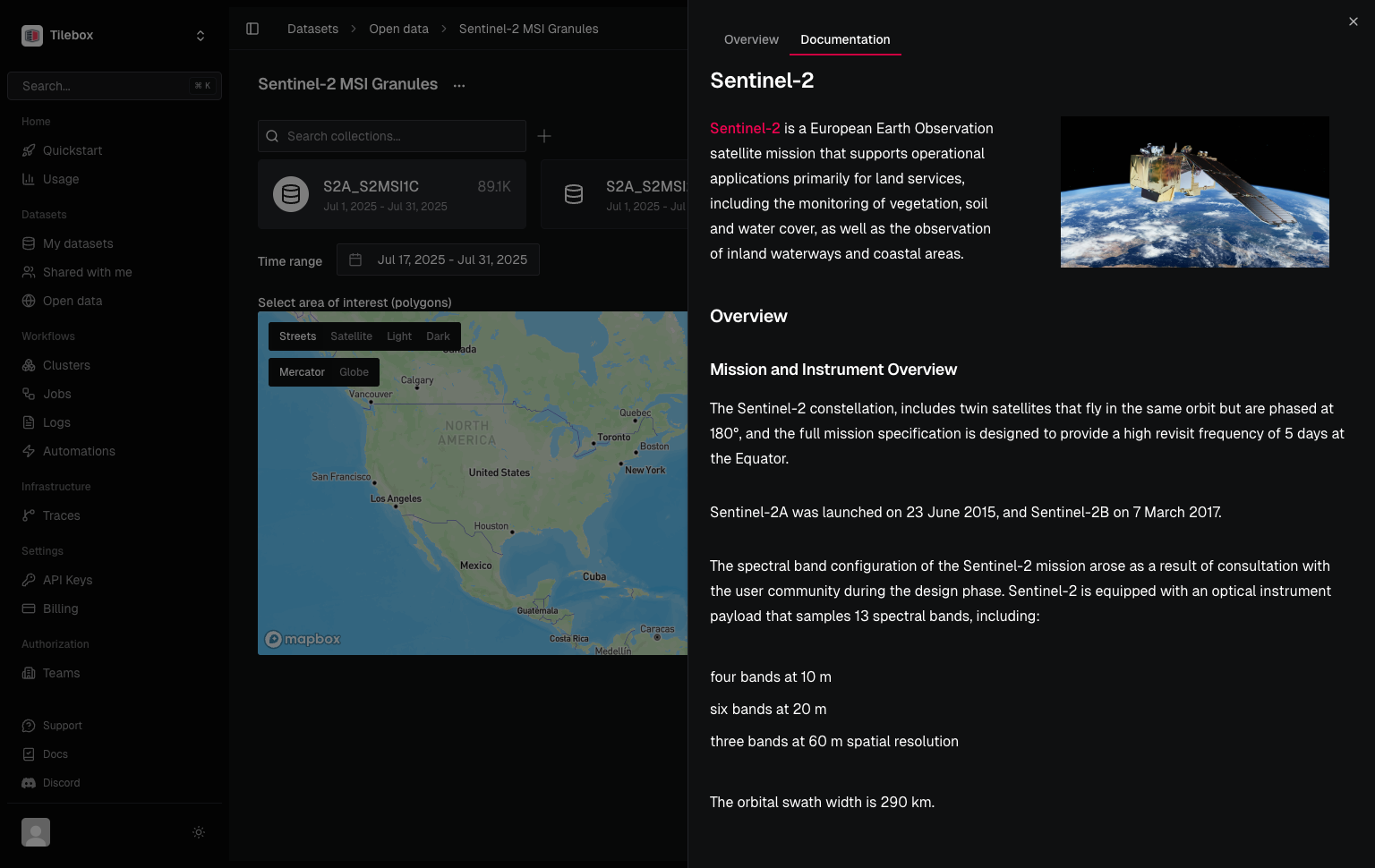

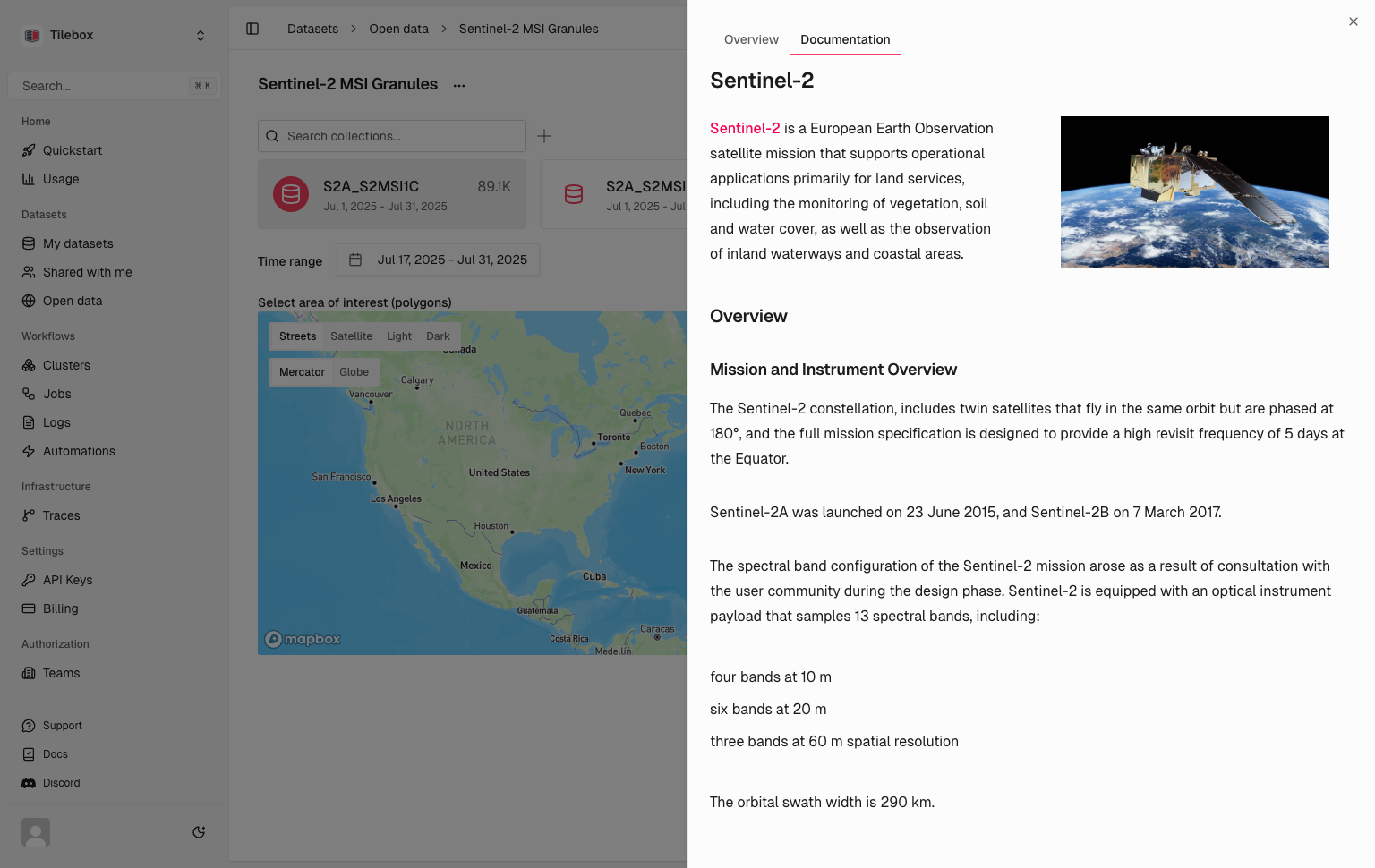

Use field descriptions for schema-level documentation. Use the Console documentation editor when you want longer Markdown documentation for the dataset, such as provenance notes, quality caveats, ingestion rules, or examples for downstream users.

Open the dataset in the Console, click the edit pencil on the documentation section, and add Markdown content. A short documentation block often includes:

Markdown

# Internal imagery catalog

This dataset indexes analysis-ready imagery products used by the operations team.

## Source

Products are copied from the provider archive after validation.

## Usage notes

Use `cloud_cover < 10` for workflows that require mostly cloud-free scenes.

Copy

Create a collection

After creating the dataset, create a collection to hold datapoints. Collections let you organize datapoints within the same schema, for example by provider, product family, or processing pipeline.

Python

collection = dataset.get_or_create_collection("landsat_level_2")
print(collection)

Copy

Prepare datapoints

Load your source metadata into a GeoDataFrame. The geometry column should contain the footprint for each datapoint.

Python

import geopandas as gpd

products = gpd.read_parquet("products.geoparquet")
products = products.rename(
    columns={
        "timestamp": "time",
        "scene": "product_id",
        "path": "source_href",
    }
)

products = products[
    ["time", "geometry", "product_id", "source_href", "cloud_cover", "processing_level"]
]

Copy

Add asset references

Convert each source file into an asset collection, then add its dataset fields to the record:

Python

from tilebox.datasets.assets import Asset, AssetCollection, AssetLocation, MediaType

records = []
for record in products.to_dict(orient="records"):
    source_href = record.pop("source_href")
    assets = AssetCollection.from_assets(
        [
            Asset(
                key="image",
                primary=AssetLocation(source_href),
                media_type=MediaType.CLOUD_OPTIMIZED_GEOTIFF,
                roles=frozenset({"data"}),
            )
        ]
    )
    records.append({**record, **assets.to_fields()})

Copy

AssetCollection.from_assets validates and normalizes the metadata into the structure consumed by the storage client. It does not upload the referenced file or test its availability.

Ingest the catalog

Ingest the prepared records into a collection.

Python

collection.ingest(records)

Copy

Query by time, location, and custom fields

After ingestion, combine the queryable custom fields with temporal and spatial filters. Tilebox applies all three filters on the server before returning matching datapoints.

Python

from shapely import box
from tilebox.datasets import field

area = box(11.0, 46.0, 12.0, 47.0)

matches = collection.query(
    temporal_extent=("2026-01-01", "2026-02-01"),
    spatial_extent=area,
    filter=(field("cloud_cover") < 10) & (field("processing_level") == "L2_SR"),
)

Copy
